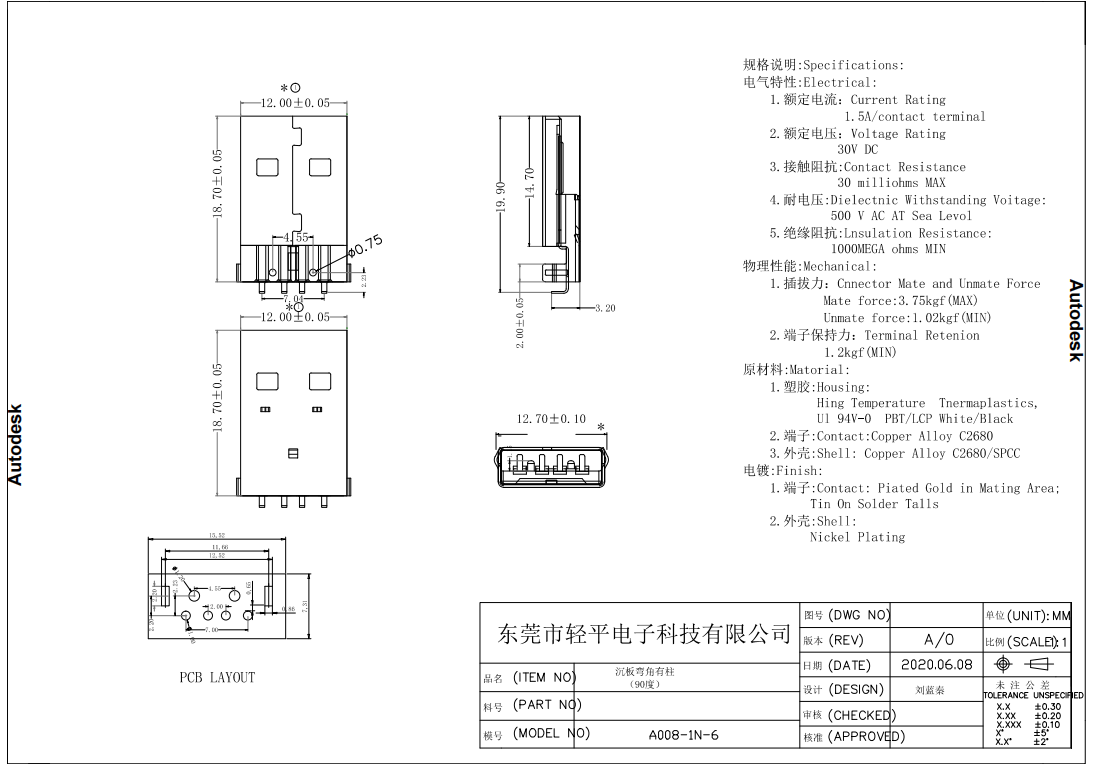

USB 2.0 A Male Through-hole Recessed 90° Bent Pin with Post, 18.7mm
-
Product name
-
USB connector
-
Product type
-
USB 2.0 A male port
-
Socket Category
-
USB2.0 AM
-
Operating methods
-
90 degrees
-
Number of layers
-
Single-layer
-
The connector terminals are connected
-
PCB printed circuit boards
-

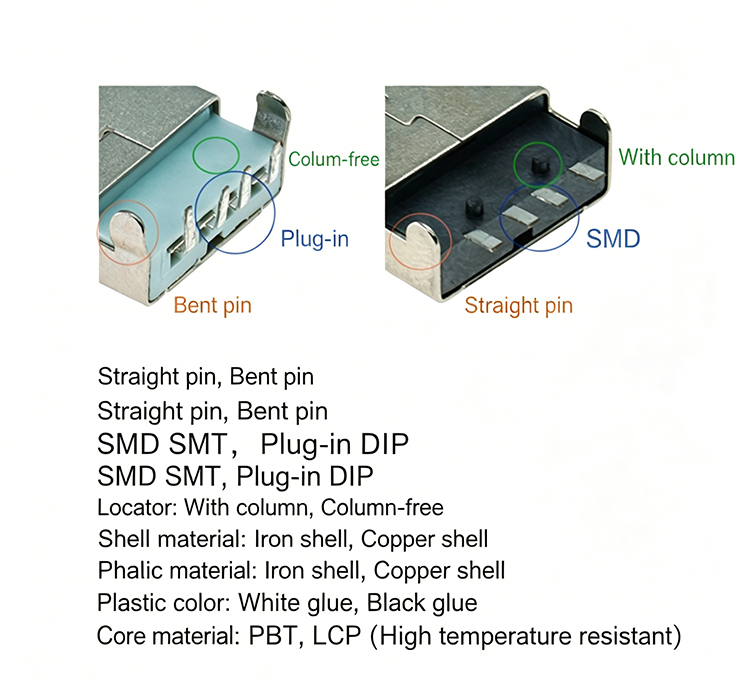

Installation method
-
SMD/DIP 90-degree horizontal type
-
Number of contact pins
-
4Pin
-
Withstand voltage
-
500V AC 1 Min.
-
Contact resistance
-
30MΩ Max.
-
Insulation resistance
-
1000MΩ Min.
-
Operating temperature
-
-25℃ to 85℃
-
Insertion force
-
5～20NF Max.
-
Pull out force
-
6～20NF Min.
